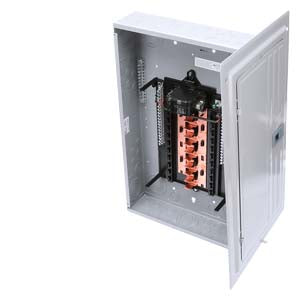

Siemens Low Voltage PL Series Load Center Factory Installed Main Breaker
Siemens
Item Details
Model: P2020B1100CU
| Product | |
| Product Description | SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 20 1-INCH SPACES ALLOWING MAX 20 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V (100A) 22KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE. REPLACED BY PN2020B1100C. AVAILABLE 4/1/2020 |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 04/01/2020 |
| Notes |
.
.
|
| Successor information | |
| Successor | US2:PN2020B1100C |
| Replacement Description | SIEMENS LOW VOLTAGE PLUG-ON NEUTRAL READY PRO SERIES ASSEMBLED LOAD CENTER. MAIN BREAKER WITH 20 1-INCH SPACES ALLOWING MAX 20 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V (100A) 22KAIC. SPECIAL FEATURES: COPPER BUS, GREY TRIM NEMA TYPE 1 ENCLOSURE FOR INDOOR USE. |
| Price data | |
| Price Group | NQF |
| List Price | Show prices |
| Customer Price | Show prices |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 15 Day/Days |
| Net Weight (lb) | 26.059 lb |
| Packaging Dimension | 5.512 x 15.748 x 25.984 |
| Package size unit of measure | Inch |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| Commodity Code | 8537109050 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Product Group | 5196 |
| Group Code | P320 |
| Country of origin | Mexico |
| Compliance with the substance restrictions according to RoHS directive | not available |
| Returnable | No |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | |
